Slurry pumps, SW series
SW Series
- STOUT CONSTRUCTION
- REDUCED MAINTENANCE
- RUBBER LINERS
- 5 MODELS
- RADIOCONTROL
- VARIABLE FLOW
Description and application

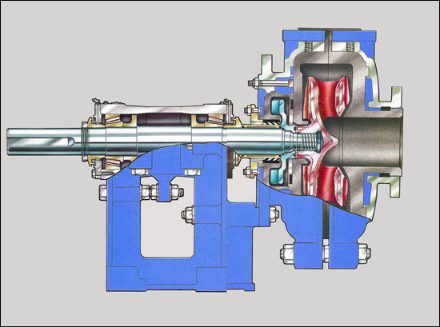

The SW series centrifugal pumps for abrasive slurries are the best available for moving mud loaded with sand and with highly abrasive particles on a drilling site. They are very robust, lined with wear-resistant rubber armour, with a closed-vane impeller in high-chromium steel of at least 800 HB guaranteed hardness. Sealing is a combined system: a packing gland for the static seal, plus a dynamic seal formed by a second impeller that creates a depression on the shaft side. The shaft support runs on oversized tapered roller bearings for long life. Maintenance is minimal, and in any case the pump can be opened in a few minutes. The pumps combine high efficiency with high flow and head.
Service life is at least 20 to 30 times that of a conventional pump.
| SW 80 | SW 100 | SW 150 | SW 200 | SW 250 | |
|---|---|---|---|---|---|
| Inlet Dia. [poll. (mm)] | 3″ (80) | 4″ (100) | 5″ (150) | 6″ (200) | 8″ (250 |
| Pump delivery [m³/h] | 70 - 30 | 150 - 50 | 250 - 50 | 300 - 120 | 500 - 200 |
| Head [mt] | 30 | 40 | 40 | 40 | 40 |
| Electric engine [Kw] | 11 | 22 | 37 | 45 | 55 |
| Diesel engine [Kw] | 20 | 30 | 50 | 70 | 90 |
